TechColors

Catppuccin Noir

I'm a big pastels guy. I absolutely adore how bright and colorful they look, which is also why I'm such a big fan of dark mode - the colors in the foreground are just so much better than the subdued texts of light mode!

As a longtime Sublime Text user, my go-to theme palette for ages was Monokai, a beautiful, vibrant color scheme that's the de-facto theme of choice for thousands of developers out there. As time went on, though, I started exploring a bit more, hunting for a theme that would feel perfect.

And then I came across Catppuccin.

Catppuccin screenshots

At first sight, I fell in love with the color palette that Catppuccin celebrated. These pastel shades were so, so beautiful - I immediately decided to give it a try in my editor. Excited, I hopped into WebStorm, downloaded the Catppuccin extension, and fired it up. And then I realized something that I hadn't realized before, since when I'd seen the screenshots of the theme palette, I'd only seen the screenshots of the editor mock-up on a blue background.

Catppuccin's default background colors were dark purple.

Now, don't get me wrong. Purple is a beautiful color, and it's my favorite one to boot, but having such a saturated background started getting frustrating. I hadn't realized by this point how much I'd come to appreciate being able to use saturation as a judge of code relevance, and having the background like this meant my eyes were regularly distracted. Slightly saddened, but still enjoying the foreground colors, I hopped into the theme customization menus and spent half an hour setting things to random shades of black and unsaturated dark grey.

And this is how I used Catppuccin for over a year - having fully switched to WebStorm by this point, I never really felt the need to establish a clear list of the colors I'd used. All the way up till our office decided to stop renewing WebStorm licenses and instead started a switch to Cursor. By the time the switch rolled around, I realized that it just wasn't possible to directly port over my handcrafted colors from before, since the menus, configuration, and even the base layouts were entirely different.

Anyways, being the geek I am, I decided that instead of just picking and sticking to a set of colors, it'd be better to instead generate these from the existing tones. After all, I loved the entire lineup of foreground and accent colors, and it was only the background ones that were causing me an issue. I'd also recently done a lot of research into color theory (look forward to an article about that!), and my singular brain cell put two and two together and decided that it was time to use some math.

As a quick introduction for those that aren't familiar with colorspaces - a colorspace is basically a nice big room (3D or 4D) where every point corresponds to a different color, and if you know the coordinates of a point, you can calculate that color. Two of the colorspaces that people are most familiar with are RGB (where we represent each value on a scale of 0-255) and CMY (printers!). Another well-known colorspace is the color wheel, HSL (where H represents the 'hue', S represents the 'saturation', and L represents the 'lightness'). There's a LOT of confusing terms thrown around here (lightness vs luminance, their relationship with contrast, and so on), but for now let's just focus on this.

Let's direct our attention towards a relatively-new colorspace - oklab, and its cousin oklch.

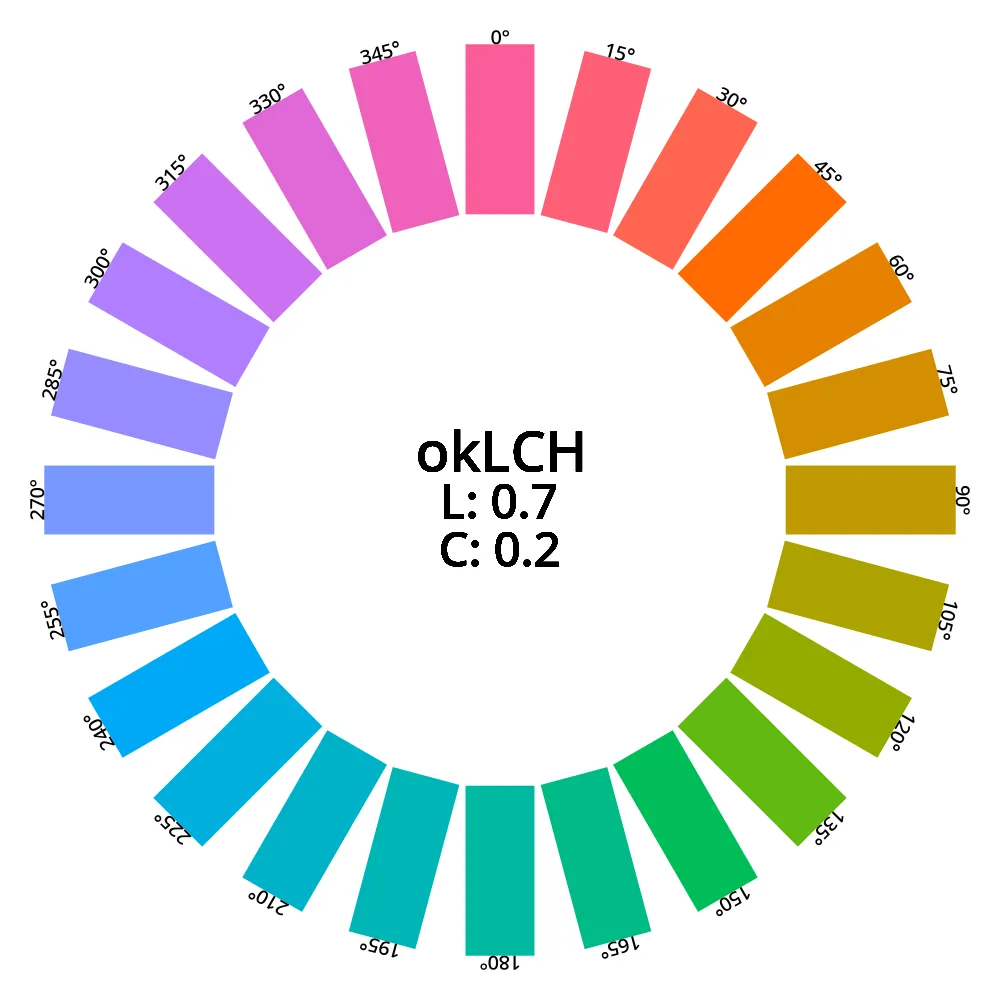

Screenshot of the oklch wheel

I promise we're not just shouting out random letters - the OK of oklab and oklch stands for 'OK', since it does an OK job.

For this reason I have designed a new perceptual color space, designed to be simple to use, while doing a good job at predicting perceived lightness, chroma and hue. It is called the Oklab color space, because it is an OK Lab color space.

https://bottosson.github.io/posts/oklab

:sparkles: to see that people still have a sense of humour in this day and age. Anyway, the L in both cases stands for 'lightness', while 'ab' and 'ch' are different ways of representing the color itself. a/b are measures of the various values of how green/red/blue/yellow the color is, while c/h are just the non-Cartesian ways of looking at the same (Rθ is back!).

  • L – perceived lightness
  • a – how green/red the color is
  • b – how blue/yellow the color is,

where a = C.cos(h) and b = C.sin(h). I'll leave the math at that, since this is explained far more elegantly in Björn Ottosson's article, but let's just keep in mind that in oklab, a/b are all different measures of how colorful the color is in a certain direction.

Back to the original problem - we have a saturated background that we want to desaturate while maintaining the same lightness (so that contrast isn't too affected). If we look at the values we have in the background Catppuccin fields (surface2, surface1, surface0, base, mantle, and crust), and convert these to their oklab representations, we know that:

  1. We want to preserve the value of L so that the contrast and lightness remain similar.
  2. We want to make the values closer to neutral - less colorful, less saturated.
  3. The background colors in Catppuccin Mocha are biased primarily towards blue/indigo.

While we're dealing in oklab, we also know that the b value controls how 'blue' or 'yellow' a color is (for reference, a negative value of ~0.4 would indicate a very blue color, while a similarly positive value of ~0.4 would indicate a very yellow color). Going by this, we want to:

  1. Keep L unchanged.
  2. Rebalance a and b to be closer to neutral (ie, 0).
  3. Primarily apply this on the blue axis, which is b.

Going by the above, if we simply divide the b value by some fixed number (preferably above 3-4), we should end up with a color that meets all our needs. And that was how Catppuccin Noir was born.

function noirify<C extends Color | string>(input: C): C {
	const oklab = toOklab(input)!;
	const noirOklab: Oklab = { ...oklab, b: (oklab.b ?? 0) / 6 };
	return (typeof input === 'string' ? formatHex(noirOklab) : converter(input.mode)(noirOklab)) as C;
}

With these new values, we end up with a Catppuccin-based theme that's much easier on the eyes, and this is now the standard dark theme I use across most of my software, including this very website and PartFiles. I don't expect this to ever gain any meaningful traction, but if you're ever interested in trying it out for yourself, feel free to fork https://github.com/PartMan7/catppuccin for yourself.

Someday I might even remember to add a preview here.

And before someone asks 'where's the math?':

// region Types
/**
 * Includes the leading #. All letters are lowercase. Will always have 6 or 8 characters, excluding the #.
 **/
export type Hex = string & { __hex: true };

/**
 * rgba() colorspace.
 * @property R A number from 0-255 representing red.
 * @property G A number from 0-255 representing green.
 * @property B A number from 0-255 representing blue.
 * @property a A number from 0-1 representing alpha. Assumed 1 if not set.
 */
export type Rgb = {
	R: number;
	G: number;
	B: number;
	a?: number;
	colorspace: 'rgba';
};
export type RgbString = string & { __rgba: true };

/**
 * lrgb() colorspace.
 * @property R A number from 0-255 representing red.
 * @property G A number from 0-255 representing green.
 * @property B A number from 0-255 representing blue.
 * @property a A number from 0-1 representing alpha. Assumed 1 if not set.
 */
export type Lrgb = {
	R: number;
	G: number;
	B: number;
	a?: number;
	colorspace: 'lrgb';
};

/**
 * CIE XYZ D50 colorspace.
 * @property X No idea. I'm sorry.
 * @property Y No idea. I'm sorry.
 * @property Z No idea. I'm sorry.
 * @property a A number from 0-1 representing alpha. Assumed 1 if not set.
 */
export type Xyz50 = {
	X: number;
	Y: number;
	Z: number;
	a?: number;
	colorspace: 'xyz50';
};

/**
 * hsla() colorspace.
 * @property H A number from 0-360 representing hue.
 * @property S A number from 0-100 representing saturation.
 * @property L A number from 0-100 representing lightness.
 * @property a A number from 0-1 representing alpha. Assumed 1 if not set.
 */
export type Hsl = {
	H: number;
	S: number;
	L: number;
	a?: number;
	colorspace: 'hsla';
};
export type HslString = string & { __hsla: true };

/**
 * oklab() colorspace.
 * @property L A number from 0-1 representing perceived lightness.
 * @property A A number from ~-0.5-~0.5 representing green (negative) - red (positive).
 * @property B A number from ~-0.5-~0.5 representing blue (negative) - yellow (positive).
 * @property a A number from 0-1 representing alpha. Assumed 1 if not set.
 */
export type Oklab = {
	L: number;
	A: number;
	B: number;
	a?: number;
	colorspace: 'oklab';
};

/**
 * oklch() colorspace.
 * @property L A number from 0-1 representing perceived lightness.
 * @property C A number from 0-~0.5 representing chroma.
 * @property H A number from 0-360 representing hue angle.
 * @property a A number from 0-1 representing alpha. Assumed 1 if not set.
 */
export type Oklch = {
	L: number;
	C: number;
	H: number;
	a?: number;
	colorspace: 'oklch';
};
export type OklchString = string & { __oklch: string };

// endregion Types

export function normalizeHue(hue: number): number {
	const deg = hue % 360;
	return deg < 0 ? deg + 360 : deg;
}

// region Conversion Methods

export function StringToHex(hex: string): Hex | null {
	const hexVal = hex.replace(/^#/, '');
	if (![3, 4, 6, 8].includes(hexVal.length)) return null;
	if (!/^[0-9a-f]+$/i.test(hexVal)) return null;

	const isShortHand = hexVal.length === 3 || hexVal.length === 4;
	const hexString = hexVal
		.toLowerCase()
		.split('')
		.map(char => char.repeat(isShortHand ? 2 : 1))
		.join('');
	return `#${hexString}` as Hex;
}

export function HexToRgb(hex: Hex): Rgb {
	const hexVal = StringToHex(hex);
	if (!hexVal) return { R: 0, G: 0, B: 0, colorspace: 'rgba' };

	const R = parseInt(hexVal.substring(1, 3), 16);
	const G = parseInt(hexVal.substring(3, 5), 16);
	const B = parseInt(hexVal.substring(5, 7), 16);
	const a = parseInt(hexVal.substring(7, 9), 16);
	const rgba: Rgb = { colorspace: 'rgba', R, G, B };
	const hexLength = hexVal.length - 1;
	if (hexLength === 4 || hexLength === 8) rgba.a = a;
	return rgba;
}

export function RgbToHex({ R, G, B, a }: Rgb): Hex {
	return `#${[R, G, B, ...(a! < 1 ? [Math.round(a! * 255)] : [])]
		.map(n => (Number.isNaN(n) ? 10 : Math.round(Math.min(Math.max(n, 0), 255))).toString(16).padStart(2, '0'))
		.join('')}` as Hex;
}

export function RgbToHsl({ R, G, B, a }: Rgb): Hsl {
	const [r, g, b] = [R / 255, G / 255, B / 255];
	const L = Math.max(r, g, b);
	const S = L - Math.min(r, g, b);
	const H = S ? (L === r ? (g - b) / S : L === G ? 2 + (b - r) / S : 4 + (r - g) / S) : 0;
	const hsl: Hsl = {
		H: Math.round(60 * H < 0 ? 60 * H + 360 : 60 * H),
		S: Math.round(100 * (S ? (L <= 0.5 ? S / (2 * L - S) : S / (2 - (2 * L - S))) : 0)),
		L: Math.round((100 * (2 * L - S)) / 2),
		colorspace: 'hsla',
	};
	if (typeof a === 'number') hsl.a = a;
	return hsl;
}

export function HslToRgb(hsl: Hsl): Rgb {
	const H = Math.round(hsl.H);
	const S = Math.round(hsl.S) / 100;
	const L = Math.round(hsl.L) / 100;
	const k = (n: number): number => (n + H / 30) % 12;
	const A = S * Math.min(L, 1 - L);
	const f = (n: number): number => L - A * Math.max(-1, Math.min(k(n) - 3, Math.min(9 - k(n), 1)));
	const rgb: Rgb = {
		colorspace: 'rgba',
		R: Math.round(255 * f(0)),
		G: Math.round(255 * f(8)),
		B: Math.round(255 * f(4)),
	};
	if (typeof hsl.a === 'number') rgb.a = hsl.a;
	return rgb;
}

export function HslToHex(hsl: Hsl): Hex {
	return RgbToHex(HslToRgb(hsl));
}

export function HexToHsl(hex: Hex): Hsl {
	return RgbToHsl(HexToRgb(hex));
}

export function RgbToLrgb({ R, G, B, a }: Rgb): Lrgb {
	const mapper = (c = 0) => {
		const abs = Math.abs(c);
		if (abs <= 0.04045) {
			return c / 12.92;
		}
		return (Math.sign(c) || 1) * Math.pow((abs + 0.055) / 1.055, 2.4);
	};
	const lrgb: Lrgb = {
		colorspace: 'lrgb',
		R: mapper(R / 255),
		G: mapper(G / 255),
		B: mapper(B / 255),
	};
	if (typeof a === 'number') lrgb.a = a;
	return lrgb;
}

export function LrgbToRgb({ R, G, B, a }: Lrgb): Rgb {
	const mapper = (c: number): number => {
		const abs = Math.abs(c);
		if (abs > 0.0031308) {
			return Math.round((Math.sign(c) || 1) * (1.055 * Math.pow(abs, 1 / 2.4) - 0.055) * 255);
		}
		return Math.round(c * 12.92 * 255);
	};
	const rgb: Rgb = {
		colorspace: 'rgba',
		R: mapper(R),
		G: mapper(G),
		B: mapper(B),
	};
	if (typeof a === 'number') rgb.a = a;
	return rgb;
}

export function LrgbToOklab({ R, G, B, a }: Lrgb): Oklab {
	const L = Math.cbrt(0.412221469470763 * R + 0.5363325372617348 * G + 0.0514459932675022 * B);
	const M = Math.cbrt(0.2119034958178252 * R + 0.6806995506452344 * G + 0.1073969535369406 * B);
	const S = Math.cbrt(0.0883024591900564 * R + 0.2817188391361215 * G + 0.6299787016738222 * B);

	const oklab: Oklab = {
		colorspace: 'oklab',
		L: 0.210454268309314 * L + 0.7936177747023054 * M - 0.0040720430116193 * S,
		A: 1.9779985324311684 * L - 2.4285922420485799 * M + 0.450593709617411 * S,
		B: 0.0259040424655478 * L + 0.7827717124575296 * M - 0.8086757549230774 * S,
	};

	if (typeof a === 'number') oklab.a = a;
	return oklab;
}

export function OklabToLrgb({ L, A, B, a }: Oklab): Lrgb {
	const l = Math.pow(L + 0.3963377773761749 * A + 0.2158037573099136 * B, 3);
	const m = Math.pow(L - 0.1055613458156586 * A - 0.0638541728258133 * B, 3);
	const s = Math.pow(L - 0.0894841775298119 * A - 1.2914855480194092 * B, 3);

	const lrgb: Lrgb = {
		colorspace: 'lrgb',
		R: 4.0767416621 * l - 3.3077115913 * m + 0.2309699292 * s,
		G: -1.2684380046 * l + 2.6097574011 * m - 0.3413193965 * s,
		B: -0.0041960863 * l - 0.7034186147 * m + 1.707614701 * s,
	};

	if (typeof a === 'number') lrgb.a = a;
	return lrgb;
}

export function OklabToOklch({ L, A, B, a }: Oklab): Oklch {
	const C = Math.sqrt(A ** 2 + B ** 2);
	const oklch: Oklch = {
		colorspace: 'oklch',
		L,
		C,
		H: C ? normalizeHue((Math.atan2(B, A) * 180) / Math.PI) : 0,
	};
	if (typeof a === 'number') oklch.a = a;
	return oklch;
}

export function OklchToOklab({ L, C, H, a }: Oklch): Oklab {
	const oklab: Oklab = {
		colorspace: 'oklab',
		L,
		A: C ? C * Math.cos((H * Math.PI) / 180) : 0,
		B: C ? C * Math.sin((H * Math.PI) / 180) : 0,
	};
	if (typeof a === 'number') oklab.a = a;
	return oklab;
}

export function HexToOklab(hex: Hex): Oklab {
	return LrgbToOklab(RgbToLrgb(HexToRgb(hex)));
}

export function RgbToOklch(rgb: Rgb): Oklch {
	return OklabToOklch(LrgbToOklab(RgbToLrgb(rgb)));
}

export function HexToOklch(hex: Hex): Oklch {
	return RgbToOklch(HexToRgb(hex));
}

export function OklchToHex(oklch: Oklch): Hex {
	return RgbToHex(LrgbToRgb(OklabToLrgb(OklchToOklab(oklch))));
}

// endregion Conversion Methods

/**
 * Converts a number to a decimal as needed with default precision 4
 */
function n(num: number): string {
	return num.toFixed(4).replace(/(?<=\.\d+)0+$|\.0+$/, '');
}

// region Stringifiers

export function RgbToString({ R, G, B, a }: Rgb): RgbString {
	const rgbString = `${n(R)}, ${n(G)}, ${n(B)}`;
	return (typeof a === 'number' ? `rgba(${rgbString}, ${n(a * 100)}%)` : `rgb(${rgbString})`) as RgbString;
}

export function HslToString({ H, S, L, a }: Hsl): HslString {
	const hslString = `${n(H)}, ${n(S)}%, ${n(L)}%`;
	return (typeof a === 'number' ? `hsla(${hslString}, ${n(a * 100)}%)` : `hsl(${hslString})`) as HslString;
}

export function OklchToString({ L, C, H, a }: Oklch): OklchString {
	return `oklch(${n(L)} ${n(C)} ${n(H)}${typeof a === 'number' ? ` ${n(a * 100)}%` : ''})` as OklchString;
}

// endregion Stringifiers

Don't say I didn't warn you.
